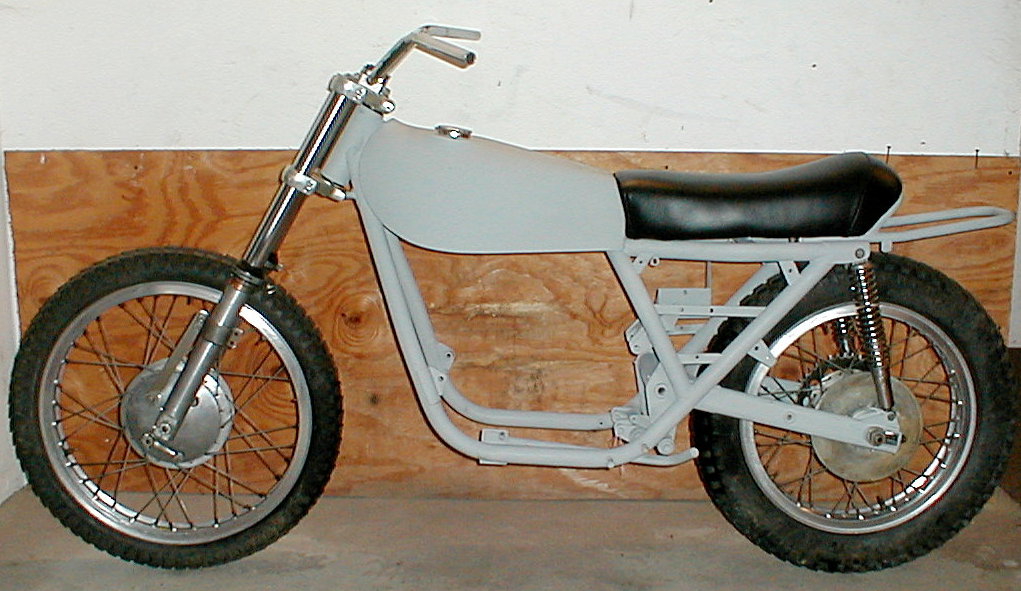

Seat just back from reupholstering,
looks better than new.

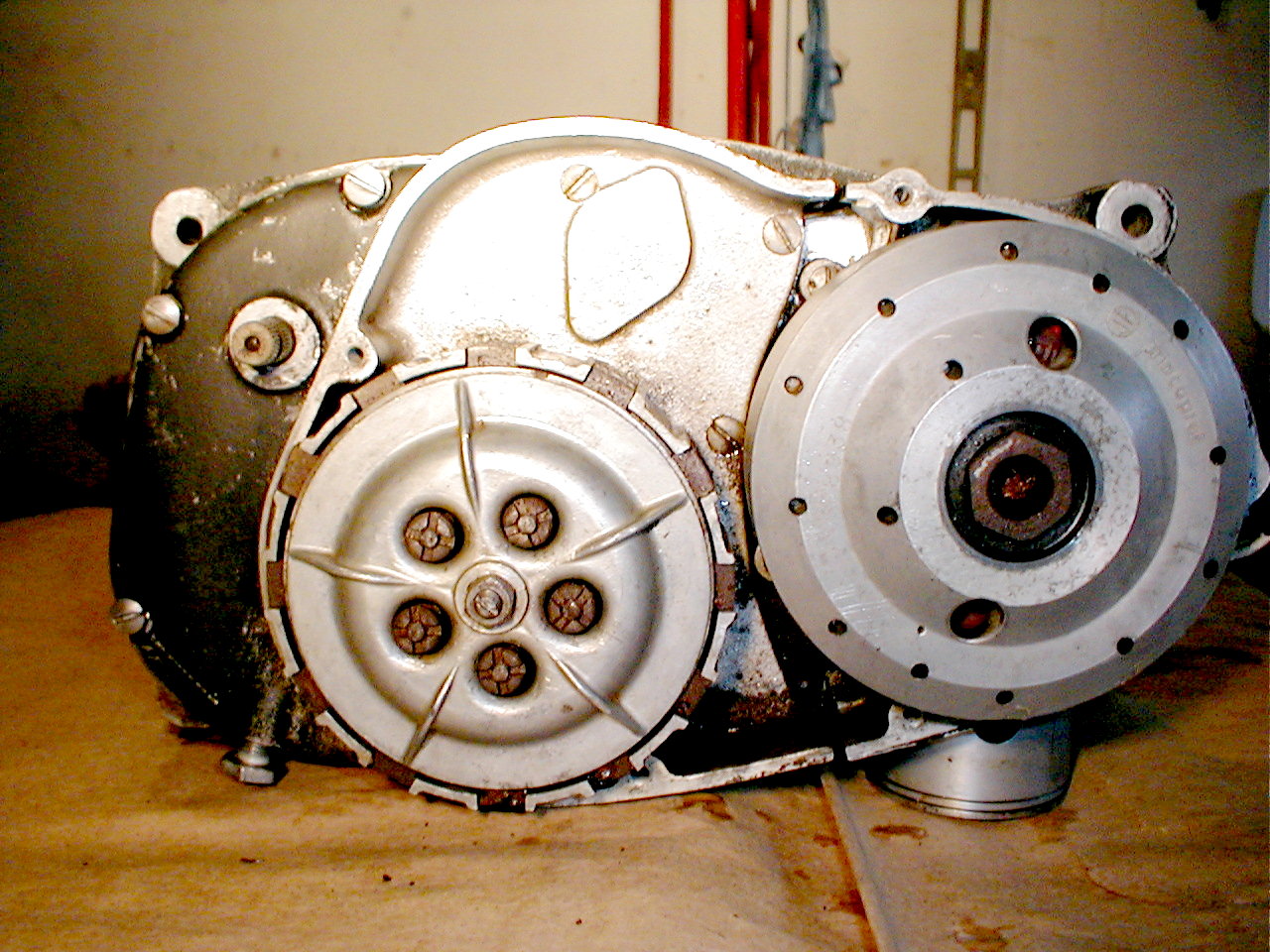

Engine beginning to be disassembled, left side
upside down, clutch basket lower
left, Motoplat flywheel on right.

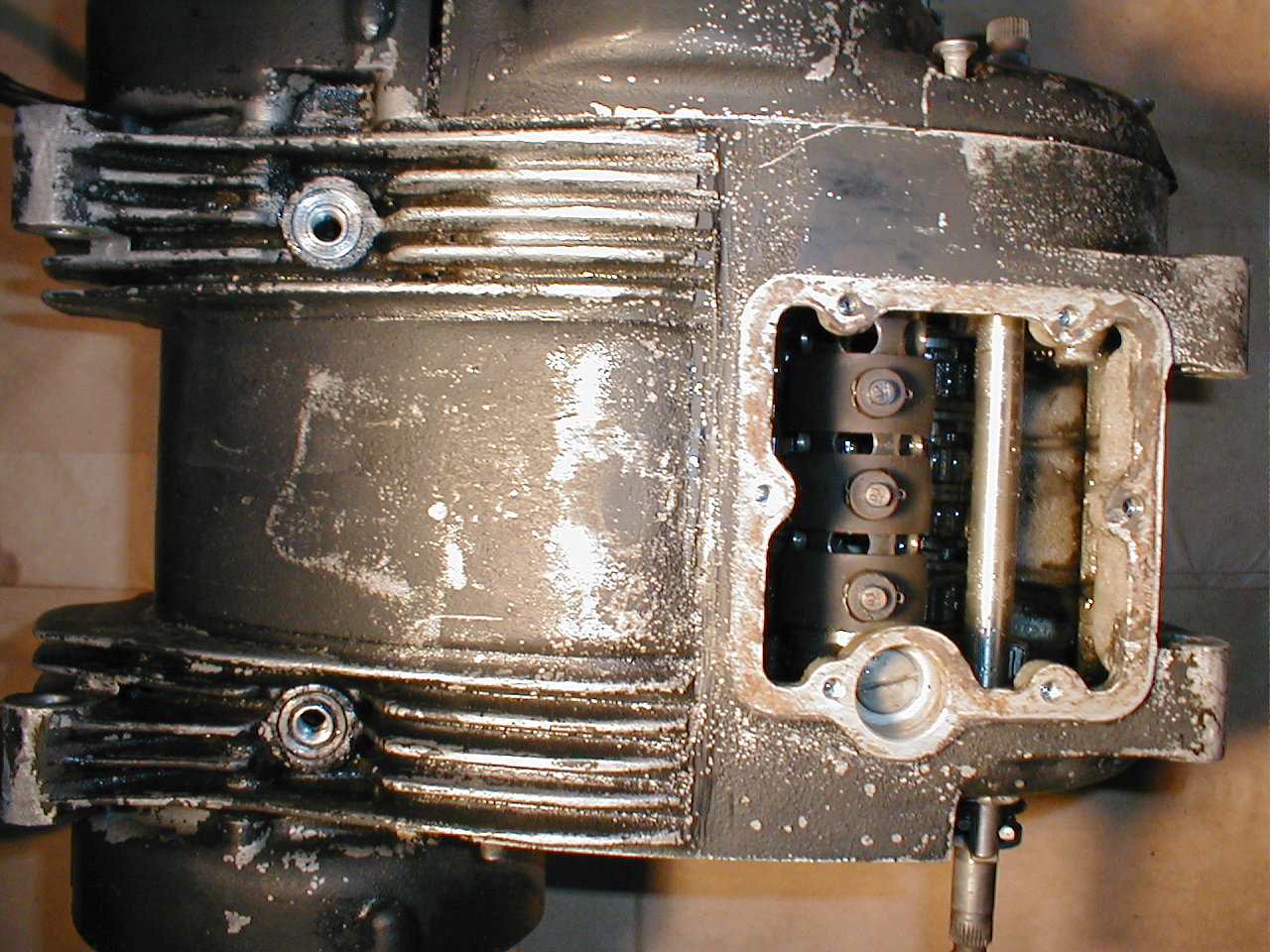

Bottom of engine, inspection cover removed. Front
is to the left, two cylinder drain plugs removed.

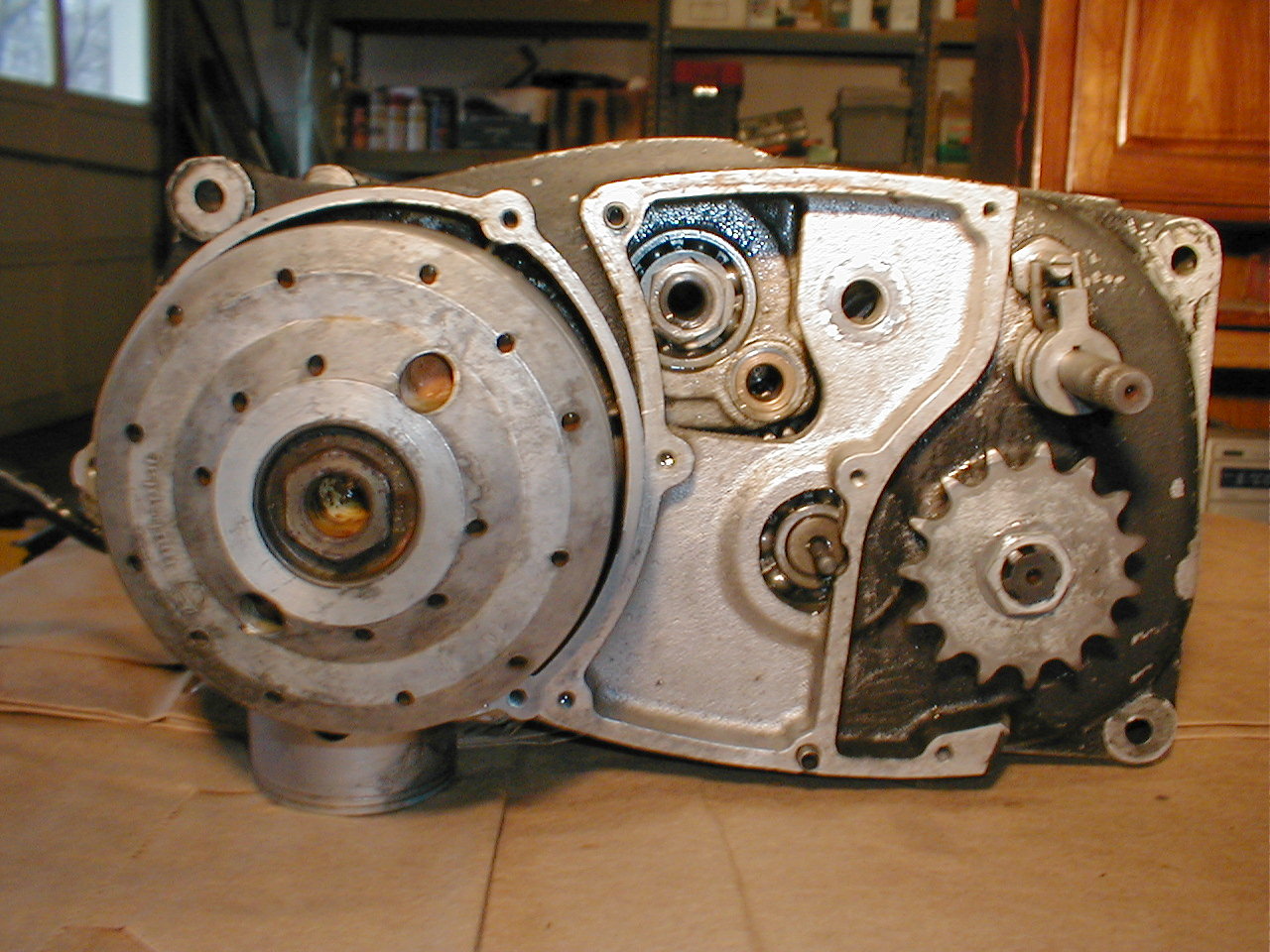

Engine right side, upside down. Flywheel,
clutch rod, shifter.

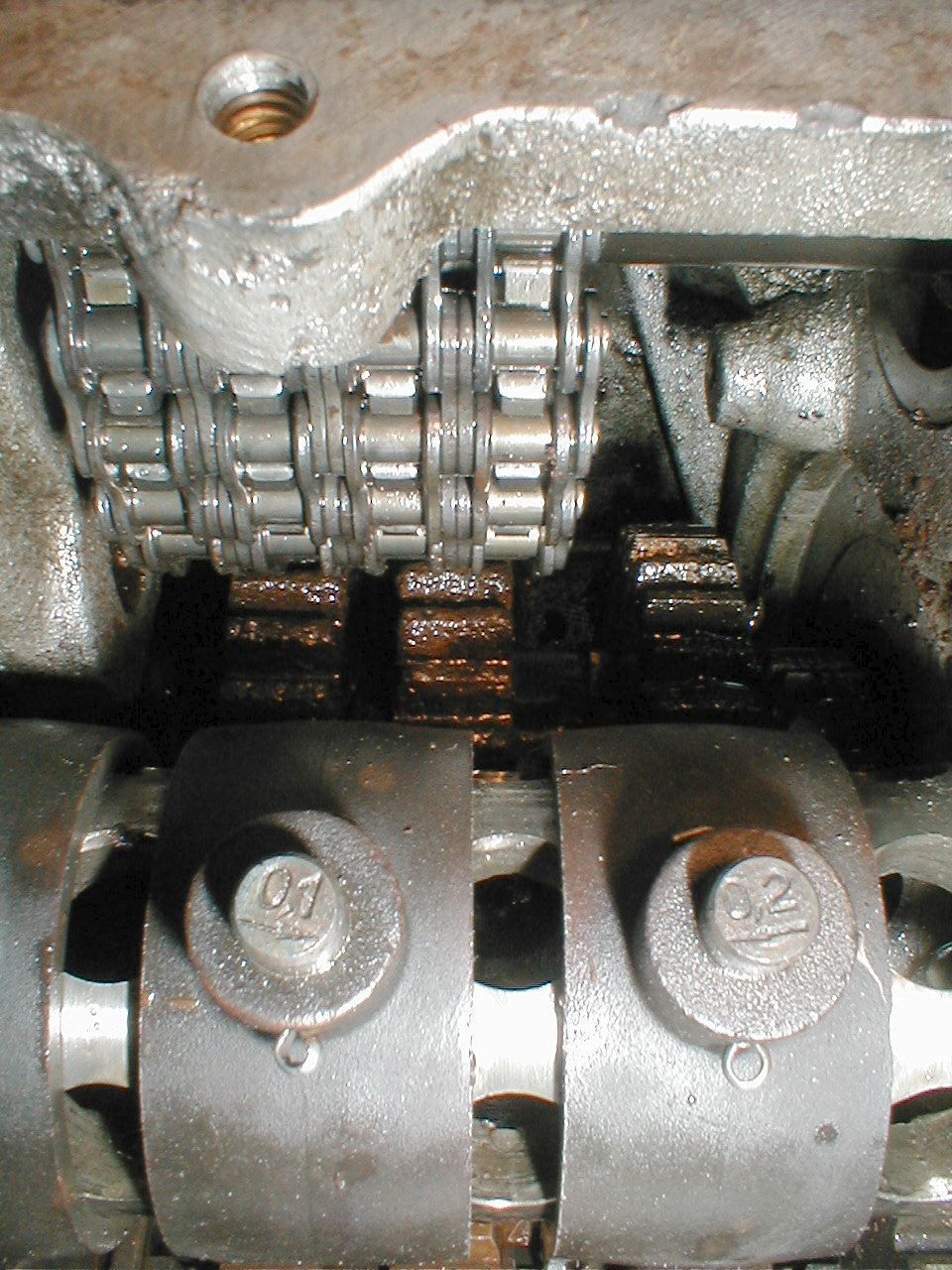

He is a sign of problems. The engine primary drive
chains are at top, and the transmission gears and
shift dogs are at the bottom. That in itself is
not a problem. The problem is....

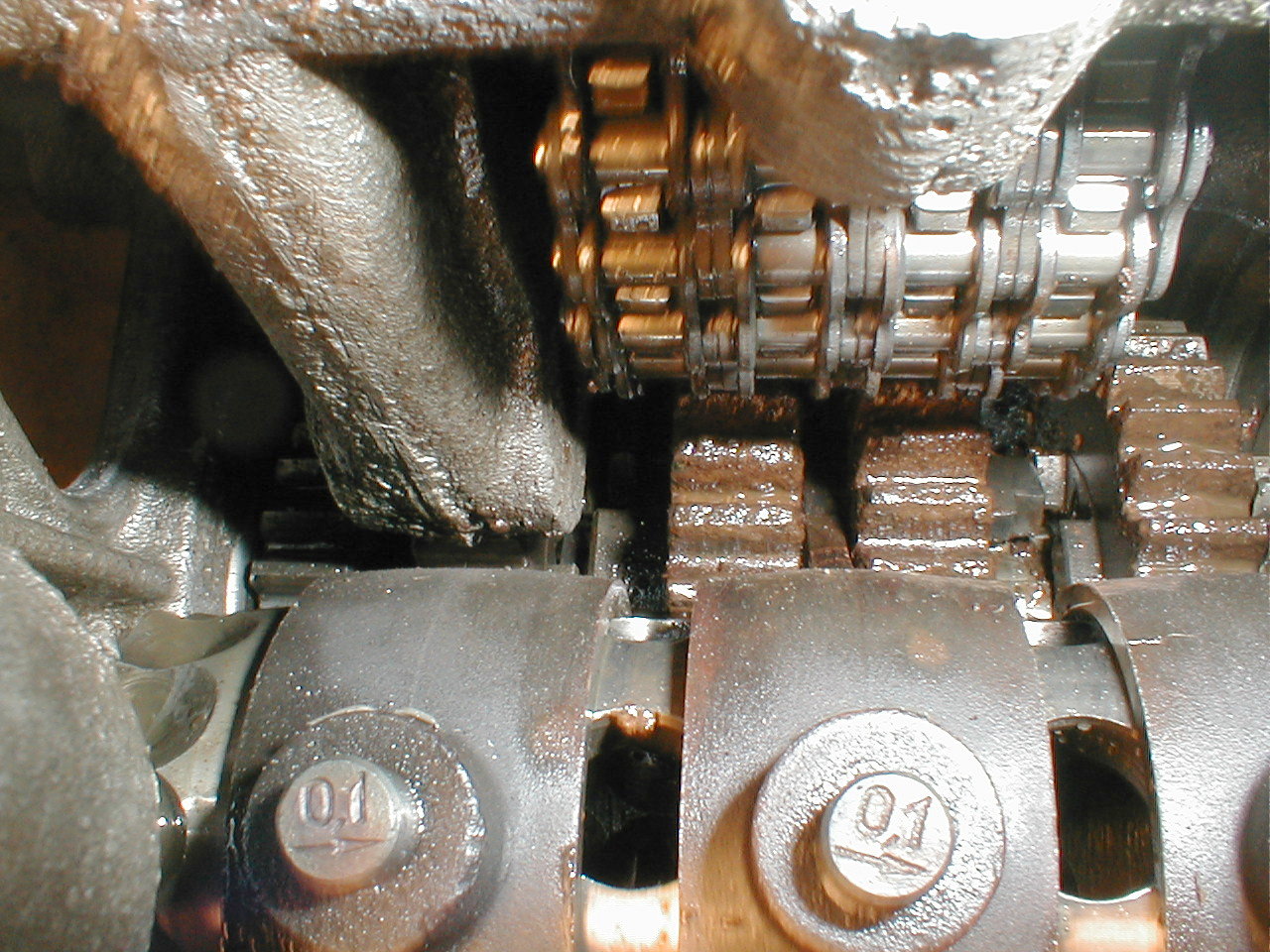

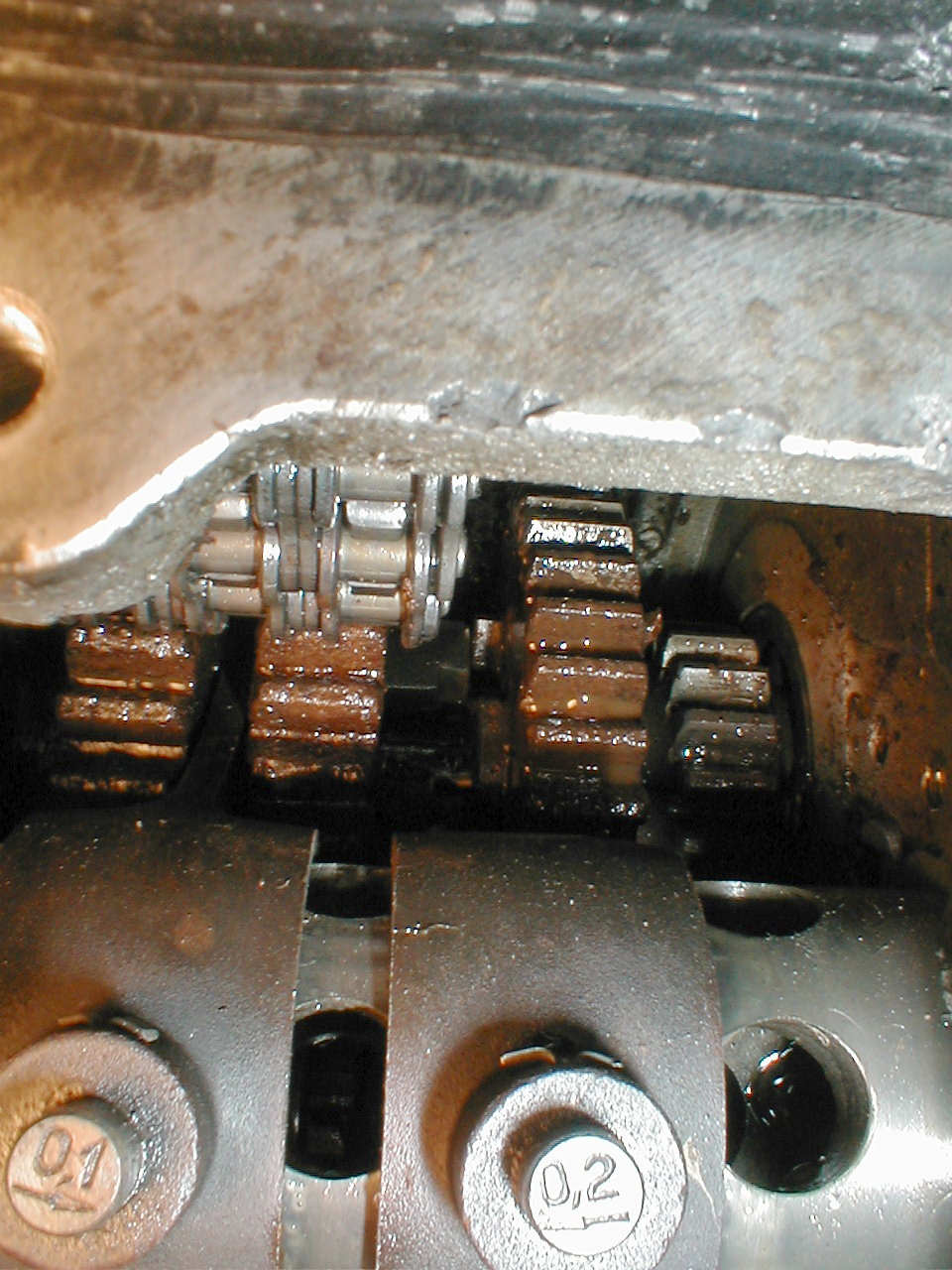

....the condition of those three transmission gears.
The gears show rust and corrosion, will need to
be replaced. The 3 affected gears are rusted
on the top half, the part that would have been
sitting above the transmission oil level, and
exposed to moisture and condensation.

I don't think cleaning and polishing the gears
is even an option. The surfaces are shot, and
would wear out the other gears if not replaced
with new ones. Good chance to check the main
bearings anyway, they should be replaced
as long as the cases are opened up.
